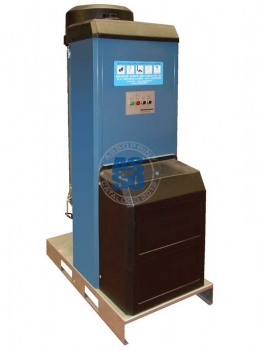

BLOWER EPK-2

BLOWER EPK-2
Code Quantity Dimensions cm. L x P x H Model Name request
LSFE3162 1 120X69X200 EPK-2 300mc/h BLOWER estimate
USE:
EPK-2 blower is a compact high pressure system, ideal for stations requiring a flexible solution for the fume and several dusts suction problem, specifically for materials removed by the laser ablation. Equipped with two filtration levels, an inlet cyclone for coarse dust and waste and a sleeve filter for fine dust and fume.

DESCRIPTION AND FEATURES:
Filter cleaning automatic system thanks to forced air inlet that makes dust fall inside the appropriate container.
Total filtering area: 3.4 m2.
Efficiency: 99.97%.
Low noise level.
Dust container on wheels, 50 litres capacity.
Motor: 5.5 Kw three-phase 380V 50 Hz.
