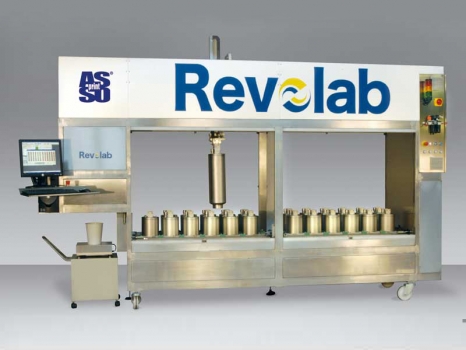

REVOLAB S24

REVOLAB S24
REVOLAB S24
REVOLAB S24
Code Quantity Model Name N° TANKS TANKS CAPACITY request
LCMS00117 1 S24 REVOLAB 24 8 LITRES estimate
USE:
REVOLAB S24 is a laboratory tintometer highly innovative for small productions, designed according to a revolutionary concept, which allows operating without pipes, stirrers and pumps. Revolab S24 revolutionary technology removes any sedimentation and precipitation problem, even keeping the typical prerogatives of the systems based on the recirculation and/or stirring colours. The functions of the tank, stirrer, dosing duct and valve are centralised in one single block. This allows the maximum flexibility of different classes of colouring with extremely limited investments. Revolab S24 ensures high speed and precision performances, with no maintenance and great reliability, thanks to the mechanical simplicity.
Specific for high density products as the third firing screen printing pastes.

DESCRIPTION AND FEATURES:
Complete recirculation of the products up to the dispenser section, without using recirculation pumps.
Changing the colouring class or extension of the range is extremely easy and economical, very useful for diversified productions.
High productivity, suitable for the sampling section.
Limited investment and very low management costs.
Continuous adjustment of the flow.
Top speed and precision.
High reliability and very little maintenance.
24 8-litres Single blocks with flow continuous adjustment.
Colour homogenization system, bases and additives.
IP67, stainless steel electronic scale of 15 Kg/0.2g.
Automatic actuator for dosing.
Dispenser washing system after every dosing.
