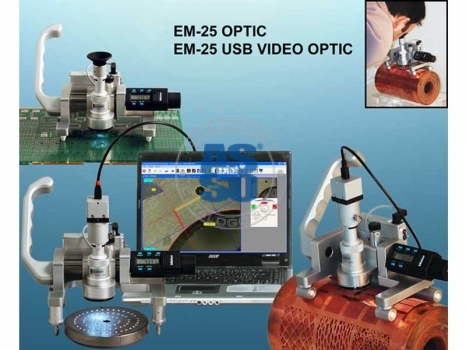

EM-25 USB VIDEO OPTIC
| Code | Quantity | Model | Name | working distance | OCULAR SCALE DIVISIONS | request |
|---|---|---|---|---|---|---|
| LSST7000 | 1 | EM25-OPT-025 | OPTIC MICROSCOPE | 17 mm | 0,05 mm | estimate |
| LSST7001 | 1 | EM25-USB-025 | OPTIC MICROSCOPE | 17 mm | 0,05 mm | estimate |
| LSST7002 | 1 | EM25-OPT-0100 | OPTIC MICROSCOPE | 11,6 mm | 0,005 mm | estimate |
| LSST7003 | 1 | EM25-USB-0100 | OPTIC MICROSCOPE | 11,6 mm | 0,005 mm | estimate |
USE:
New optical and video instruments intended for control and precision measurement of small objects or various types of surfaces. Used both on flat and curved surfaces. They can be used indifferently as optical and video instruments at the same time. For video use, a 1.3 Mpixel USB microcamera is used inserted on the ocular specifically designed for the utmost simplicity of use.
DESCRIPTION AND FEATURES:
Fully built in aluminium and steel.Lengthwise sliding.Powerful intensity annular light source LED and sturdy height adjustable aluminium base. Digital micrometric shifting measuring device for Enermax measuring up to 25 millimetres with 0.001 mm resolution, or up to 50 mm (with optional spacers).
