MINOLTA SPECTROPHOTOMETER
| Code | Quantity | Dimensions cm. L x P x H | Model | Name | SPHERE | MEASUREMENT AREA | request |
|---|---|---|---|---|---|---|---|
| LCST0095 | 1 | 6,9x9,6x19,3 | MINOLTA-CM 2300D | SPECTROPHOTOMETER | Ø 52 mm | MAV: Ø 8 mm | estimate |
USE:

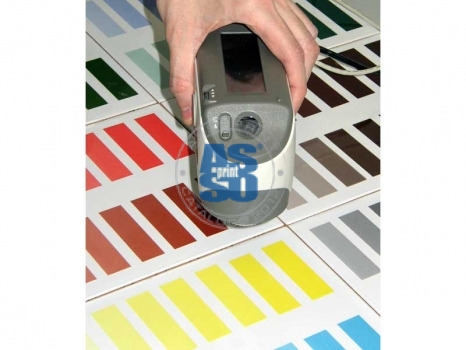

Tool for the measurement of the chromatic spectrum. The spectrophotometer is used to measure the colorimetry and is a tool suitable for an accurate control of the colour in the production sectors. Its features allow analysing also the products with complicated shapes perfectly, measuring also small details. Therefore, by measuring and displaying the results on a spectral graph, the nature of the sample colour can be seen and the differences can be defined, even those that cannot be detected by human eye, between samples of colours apparently the same. Used in ceramic glazes of colour definition, it is very useful when comparing different glazes, as it provides directly the values of ∆L (if a glaze is lighter or darker than a target), ∆a (if the glaze tends more towards red than green compared to the target), ∆b (if the glaze tends more to yellow than blue compared to the target).
DESCRIPTION AND FEATURES:
The spectrophotometer is used in colour definitions of ceramic glazes, very useful when confronting different glazes.
The chromatic difference from a target colour can be measured and displayed immediately under a numeric form, beyond the display of colour numerical data.
The spectrophotometer can display the spectral reflectance graph, measuring the light reflected by the item at each wavelength.
The data can be displayed on a graph, in order to provide more detailed information on the colour nature.
Base.
AC Supply.
RS-232 C connection cable.
Two language internal software (English, Chinese).
Operative manual.
Tool for the measurement of the chromatic spectrum. The spectrophotometer is used to measure the colorimetry and is a tool suitable for an accurate control of the colour in the production sectors. Its features allow analysing also the products with complicated shapes perfectly, measuring also small details. Therefore, by measuring and displaying the results on a spectral graph, the nature of the sample colour can be seen and the differences can be defined, even those that cannot be detected by human eye, between samples of colours apparently the same. Used in ceramic glazes of colour definition, it is very useful when comparing different glazes, as it provides directly the values of ∆L (if a glaze is lighter or darker than a target), ∆a (if the glaze tends more towards red than green compared to the target), ∆b (if the glaze tends more to yellow than blue compared to the target).
DESCRIPTION AND FEATURES:
The spectrophotometer is used in colour definitions of ceramic glazes, very useful when confronting different glazes.The chromatic difference from a target colour can be measured and displayed immediately under a numeric form, beyond the display of colour numerical data.The spectrophotometer can display the spectral reflectance graph, measuring the light reflected by the item at each wavelength.The data can be displayed on a graph, in order to provide more detailed information on the colour nature.Base.AC Supply.RS-232 C connection cable.Two language internal software (English, Chinese).Operative manual.
